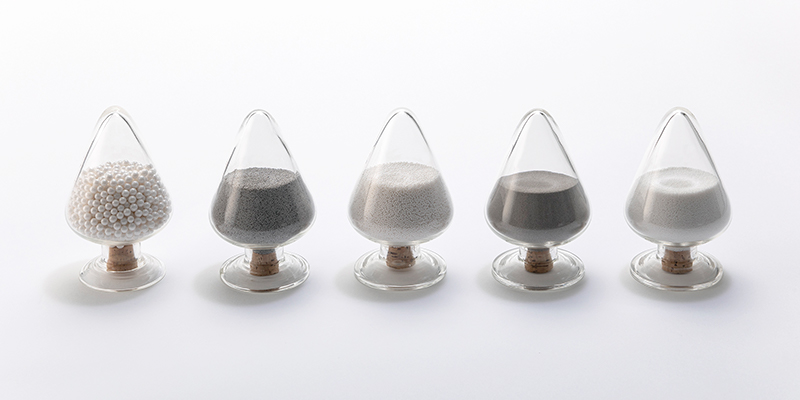

Zirconia Beads TORAYCERAM™
Technological Elements

- TORAYCERAM™ zirconia beads are a ceramic media for crushing/dispersing. It is used in powder atomization processes using a crusher. The main ingredient is tetragonal zirconia; zirconium oxide with added yttrium oxide. There is a wide selection of sizes, and we can support nano-order level crushing/dispersing.
Features
1. High Purity
Extremely low possibility of contamination by impurities that would affect the characteristics of the substance being dispersed, such as Fe2O3, SiO2, and MgO
2. High Strength
The strength of zirconia ceramic with stable tetragonal crystals is high, and the occurrence of breakage/chipping is extremely low
3. High Precision
The mixture of deformed beads, such as those with elliptical/dumbbell shapes, is extremely low, increasing the crushing/dispersion efficiency
4. High Density
The highest specific gravity (over 6.00) of ceramics, making it excellent for crushing/dispersion
5. Contamination-free
Not easily eroded, so contamination of the material being crushed or dispersed by the beads can be minimized
6. High Toughness
Maintains an industry-leader level of fracture toughness, twice or more that of alumina
7. High Erosion Resistance
The surface is smooth and has excellent resistance to erosion, providing stability and efficiency in production
<Benefits as Dispersing Media>
• Narrow bead particle size distribution contributes to uniform grinding and dispersion.
• High bead sphericity and smooth surface reduce bead wear and minimize contamination.
Technology Information
<HIP Treatment>
HIP: Hot Isostatic Pressing
Eliminates internal defects inside the beads under high temperature and high pressure to improve reliability.

<Product Characteristics>
| Size [mm] |
External Tolerance Range | Average Crush Weight [kgf] |
|
|---|---|---|---|
| Upper Specification Limit | Lower Specification Limit | ||
| 0.05 | 0.02 | 0.02 | |
| 0.10 | 0.03 | 0.03 | ≥ 1 |
| 0.20 | 0.05 | 0.05 | ≥ 3 |
| 0.30 | 0.10 | 0.05 | ≥ 6 |
| 0.40 | 0.10 | 0.10 | ≥ 10 |
| 0.50 | 0.10 | 0.10 | ≥ 20 |
| 0.65 | 0.15 | 0.15 | ≥ 30 |
| 0.80 | 0.10 | 0.10 | ≥ 50 |
| 1.00 | 0.20 | 0.20 | ≥ 80 |
| 1.25 | 0.20 | 0.20 | ≥ 120 |
| 1.50 | 0.20 | 0.20 | ≥ 160 |
| 2.00 | 0.20 | 0.20 | ≥ 240 |
| 3.00 | 0.30 | 0.30 | ≥ 500 |
| 5.00 | 0.50 | 0.50 | ≥ 600 |
| Measurement Value | Composition Ratio (wt%) |
|---|---|
| ZrO2 | 94.75 ± 0.60 |
| Y2O3 | 4.90 ± 0.50 |
| Al2O3 | 0.30 ± 0.10 |
| Fe2O2 | ≤ 0.01 |
| SiO2 | ≤ 0.01 |
| TiO2 | ≤ 0.01 |
| Measurement Value | |
|---|---|
| Density [g/cm3] | 6.06 |
| Packing Density [g/cm3] | 3.70 |
| Hardness [Hv] | 1300 |
