Adhesive Film FALDA™![FALDA™](../images/logo_falda.png)
FALDA™ is an adhesive film for electronic components/semiconductors with proven performance in a wide range of applications.
Toray's adhesive film is available in epoxy/polyimide (photodefinable/non-photodefinable) types.
Features
- The adhesive layer is film, achieving an even film thickness.
- It can handle a wide range of applications depending on customers' needs.
- Proven performance in applications in the electronic components and semiconductor fields.
- Product lineup by application [epoxy/polyimide (photodefinable/non-photodefinable)].

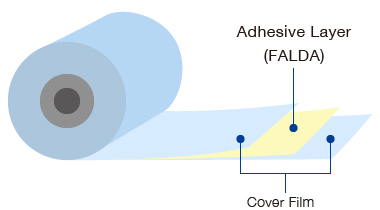

Product Cross Section
FALDA™ has a cover film.
Peel the film from one or both surfaces just before application.
![](../images/img_007.jpg)

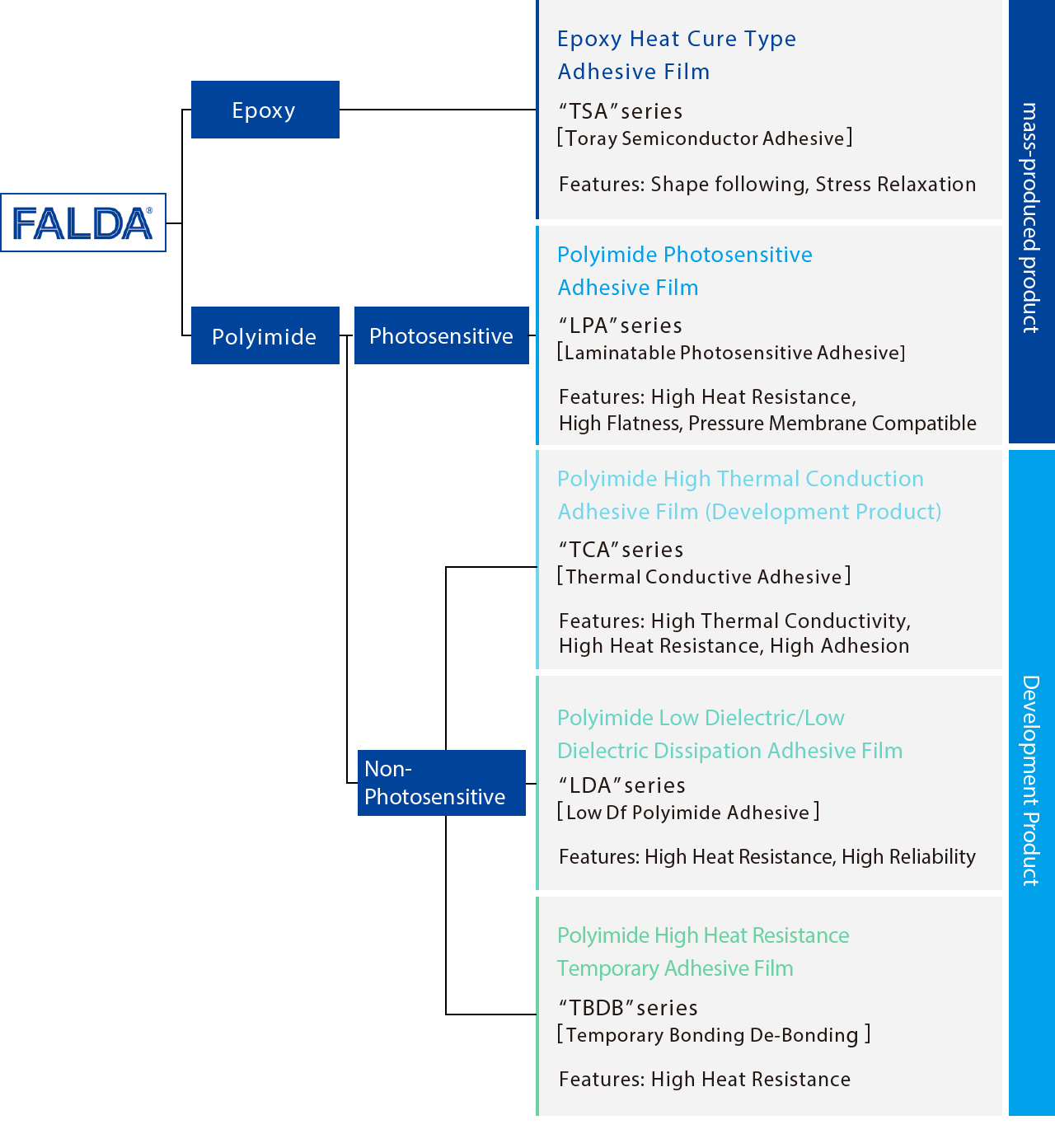

Correlation Diagram
![](../images/img_008.jpg)
Product Specifications
Basic specifications of the mass produced product are as follows. Please contact us for other information or requirements.
Item | Epoxy Thermoset Type | Polyimide Photodefinable Type | Polyimide Thermoset Type (NCF) |
---|---|---|---|
Adhesive Thickness (µm) | 20 to 100 | 15 to 50 | 10 to 40 |
Cover Film Types | PET, PP | PET, PE | PET |
Product Width (mm) | up to 500 | up to 500 | up to 500 |
FALDA™ Type Lineup
- Epoxy Heat Cure Type Adhesive Film
- Polyimide Photodefinable
Adhesive Film - Polyimide Heat Cure type
Adhesive Film - Polyimide High Thermal Conduction
Adhesive Film (Development Product) - Polyimide Low Dielectric/Low Dielectric Dissipation
Adhesive Film (Development Product) - Polyimide High Heat Resistance Temporary
Adhesive Film (Development Product)
