Plastic Optical Fiber RAYTELA™ Optical Fiber Wire
Overview
A plastic optical fiber made using high-purity polymethyl methacrylate (PMMA) that has low loss and high reliability. Available in fiber diameters of 250 µm to 3,000 µm.
Technology Information
PG Series

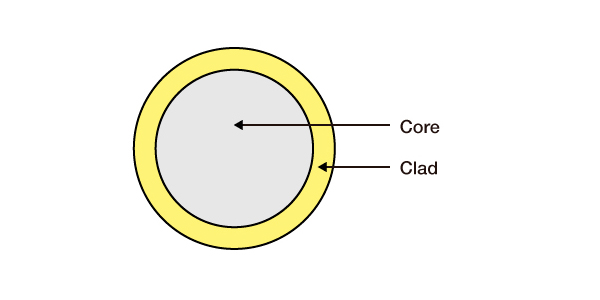

Fiber Specifications
| Item | Specifications | |
|---|---|---|
| Core | Material | Polymethyl Methacrylate |
| Refractive Index | 1.49 | |
| Cladding | Material | Fluorine Containing Polymer |
| Refractive Index | 1.41 | |
| Optical Structure | Step Index | |
| Numerical Aperture (NA) | 0.5 | |
| Maximum Light Reception | 60° | |
| Regular Usage Temperature | -55 to 70°C | |
Fiber Products
| Product Types | Core Diameter (µm) | Cladding Diameter (µm) |
Spool Length (m/spool) | Transmittance (at 650 nm) (dB/m) |
Tolerance Bend Radius (mm) |
Packaging Materials | |
|---|---|---|---|---|---|---|---|

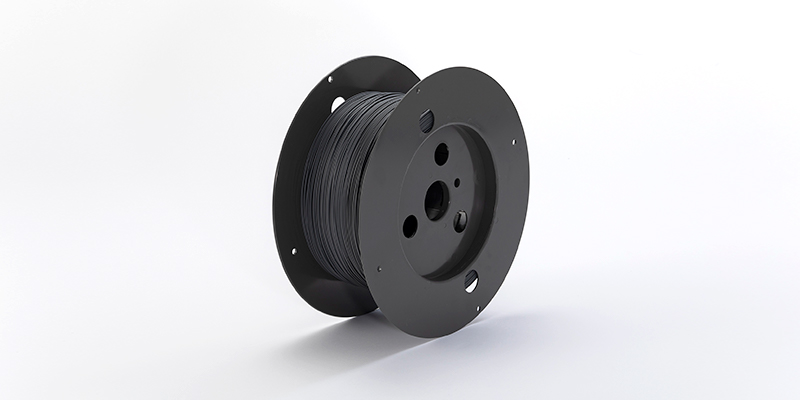

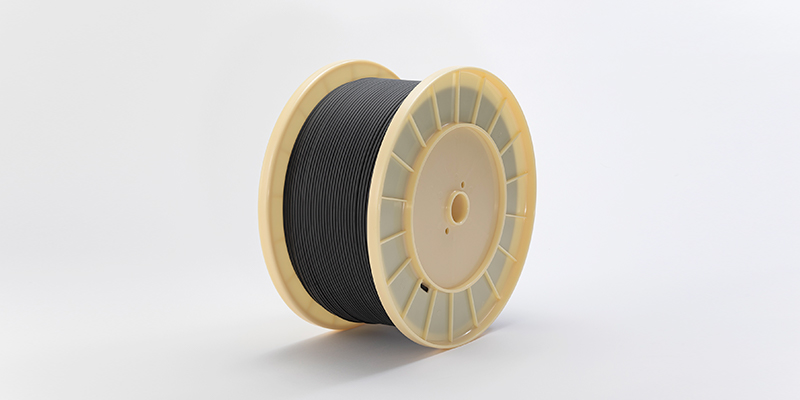

| Spool | Carton | ||||||
| PG-FB 250 | 240 | 250 | 12,000 | ≦ 0.30 | 9 | B | a, b, c |
| PG-FB 500 | 486 | 500 | 6,000 | ≦ 0.18 | 9 | B | a, b, c |
| PG-FB 750 | 735 | 750 | 2,700 | ≦ 0.15 | 9 | B | a, b, c |
| A | a, b, c | ||||||
| PG-FB1000 | 980 | 1,000 | 1,500 | ≦ 0.15 | 9 | B | a, b, c |
| 5,250 | A | a, b, c | |||||
| PG-FB1500 | 1,480 | 1,500 | 700 | ≦ 0.15 | 20 | B | a, b, c |
| A | a, b, c | ||||||
| PG-FB2000 | 1,980 | 2,000 | 350 | ≦ 0.20 | 20 | B | a, b, c |
| A | a, b, c | ||||||
| PG-FB3000 | 2,980 | 3,000 | 150 | ≦ 0.20 | 20 | B | a, b, c |
| A | a, b, c | ||||||
PF Series
Fiber Specifications
| Item | Specifications | |
|---|---|---|
| Core | Material | Polymethyl Methacrylate (PMMA) |
| Refractive Index | 1.49 | |
| Cladding | Material | Fluorine Containing Polymer |
| Refractive Index | 1.42 | |
| Optical Structure | Step Index | |
| Numerical Aperture (NA) | 0.46 | |
| Maximum Light Reception | 55° | |
| Regular Usage Temperature | -55 to 85°C | |
Fiber Products
| Product Types | Core Diameter (µm) |
Cladding Diameter (µm) |
Spool Length (m/spool) |
Transmittance (at 650 nm) (dB/m) |
Tolerance Bend Radius (mm) |
Packaging Materials | |
|---|---|---|---|---|---|---|---|
| Spool | Carton | ||||||
| PF-FB 500 | 486 | 500 | 6,000 | ≦ 0.18 | 17 | B | a, b, c |
| PF-FB 750 | 735 | 750 | 2,700 | ≦ 0.15 | 17 | B | a, b, c |
| PF-FB1000 | 980 | 1,000 | 5,250 | ≦ 0.15 | 17 | B | a, b, c |
| A | a, b, c | ||||||
- When using, please read the "Usage Precautions" and use properly.
- The packaging materials (spools and cartons) can be checked here.
